John Deere Military Equipment Line
John Deere’s Military Equipment Line is renowned for its robust engineering and reliable performance, tailored to meet the rigorous demands of military operations. These machines are designed to perform a wide range of tasks in various challenging environments, ensuring efficiency, durability, and ease of use for military personnel.

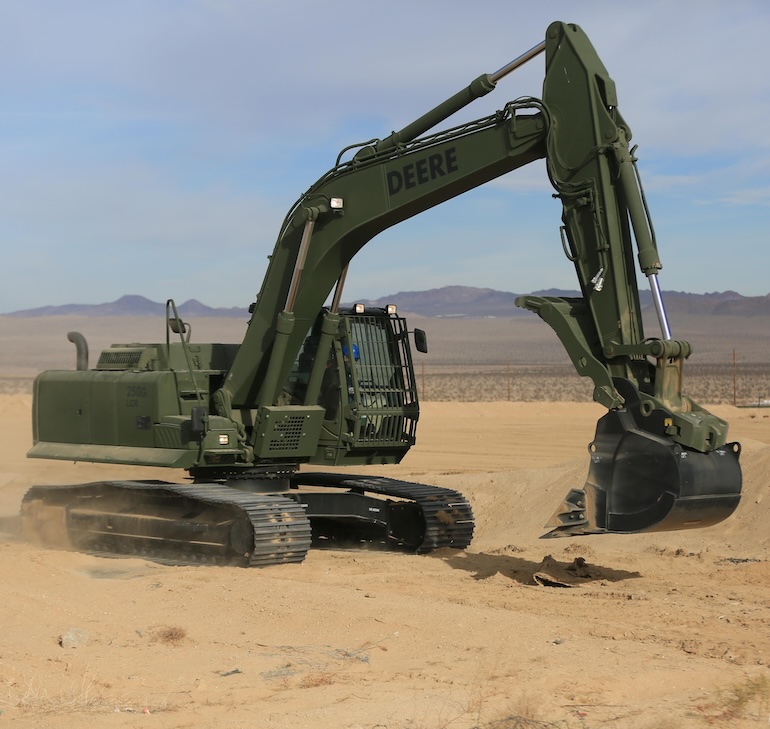

John Deere 250G LCR Military Excavator
The John Deere 250G LCR military excavator is a powerful and versatile machine designed to handle a wide range of heavy-duty tasks in construction, mining, and military operations. The “LCR” in its name stands for “Low Clearance Radius,” indicating that this model has a reduced tail swing, making it ideal for working in confined spaces without compromising on performance.
The reduced tail swing design allows the 250G LCR to work efficiently in tight spaces, reducing the risk of damage to the machine and surrounding structures. Equipped with a robust engine and advanced hydraulic system, this excavator delivers high digging and lifting capabilities.
John Deere 250G LCR Specs:
| Specification | Details |
|---|---|
| Engine | |
| Power | 188 hp (140 kW) |
| Model | John Deere PowerTech™ PVS 6.8L |
| Emission Standards | EPA Final Tier 4/EU Stage IV |
| Operating Weight | |
| Weight | 56,167 lb (25,480 kg) |
| Performance | |
| Maximum Digging Depth | 26 ft 11 in (8.20 m) |
| Maximum Reach at Ground Level | 30 ft 7 in (9.32 m) |
| Bucket Breakout Force | 41,442 lbf (184 kN) |
| Arm Digging Force | 32,714 lbf (145.5 kN) |
| Dimensions | |
| Tail Swing Radius | 6 ft 7 in (2.00 m) |
| Overall Width | 10 ft 6 in (3.20 m) |
| Overall Height | 10 ft 4 in (3.14 m) |
| Hydraulic System | |
| Main Pumps | Variable axial piston |
| Pump Flow | 2 x 52.8 gpm (2 x 200 L/min) |
| System Pressure | 5,205 psi (35,880 kPa) |
| Fuel Capacity | |
| Tank Capacity | 158 gallons (600 L) |
| Other Features | |
| Cab | Spacious, climate-controlled with adjustable seating and advanced control interfaces |
| Tracks | Durable and designed for stability in various terrains |
| Attachments | Compatible with a variety of buckets, grapples, hammers, and other attachments for versatility |
The ergonomic cab design ensures operator comfort during long working hours, increasing productivity and reducing fatigue. Built to withstand harsh working conditions, the JD 250G LCR is engineered with reinforced components and high-quality materials for extended service life. Features such as telematics and monitoring systems help in maintaining optimal performance and simplifying maintenance tasks.

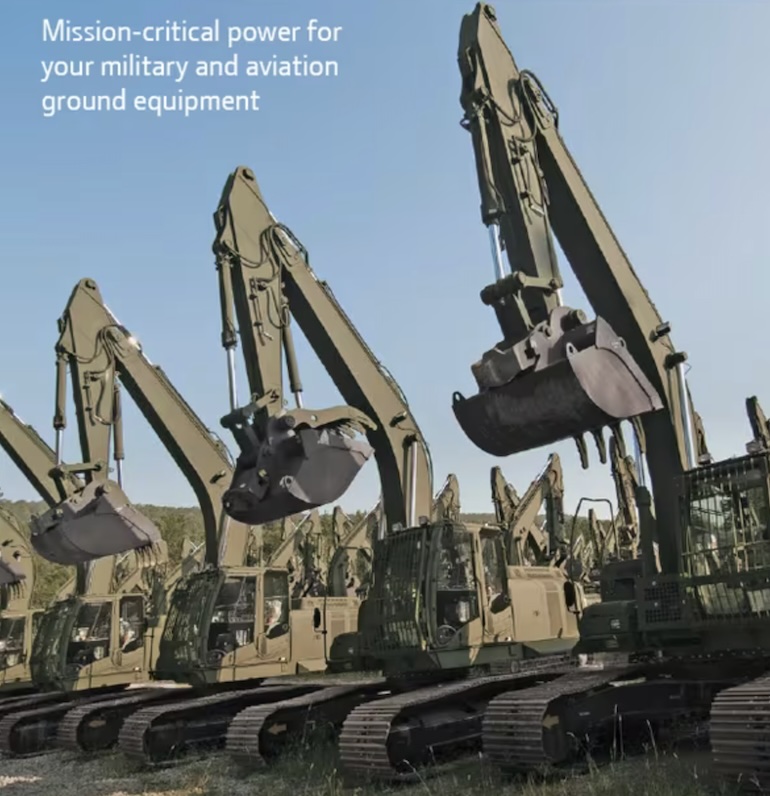

John Deere 240D LCR Military HEX
The 240D LCR HEX is designed to operate in challenging environments, providing superior digging force, reach, and lifting capacity while maintaining a compact tail swing radius for maneuverability in confined spaces.
Whether it’s for excavation, construction, or demolition tasks, the John Deere 240D LCR Military Excavator stands out as a reliable and efficient solution for military engineering units.
John Deere 240D LCR HEX Specs:
| Specification | Details |
|---|---|
| Engine | |
| Power | 177 hp (132 kW) |
| Model | John Deere PowerTech™ E 6.8L |
| Emission Standards | EPA Tier 3/EU Stage IIIA |
| Operating Weight | |
| Weight | 56,167 lb (25,460 kg) |
| Performance | |
| Maximum Digging Depth | 24 ft 11 in (7.60 m) |
| Maximum Reach at Ground Level | 33 ft 2 in (10.10 m) |
| Bucket Breakout Force | 39,100 lbf (174 kN) |
| Arm Digging Force | 27,260 lbf (121 kN) |
| Dimensions | |
| Tail Swing Radius | 5 ft 9 in (1.75 m) |
| Overall Width | 10 ft 6 in (3.20 m) |
| Overall Height | 10 ft 3 in (3.12 m) |
| Hydraulic System | |
| Main Pumps | Variable axial piston |
| Pump Flow | 2 x 49.1 gpm (2 x 186 L/min) |
| System Pressure | 4,980 psi (34,300 kPa) |
| Fuel Capacity | |
| Tank Capacity | 166 gallons (628 L) |
| Other Features | |
| Cab | Spacious, climate-controlled with adjustable seating and advanced control interfaces |
| Tracks | Durable and designed for stability in various terrains |
| Attachments | Compatible with a variety of buckets, grapples, hammers, and other attachments for versatility |

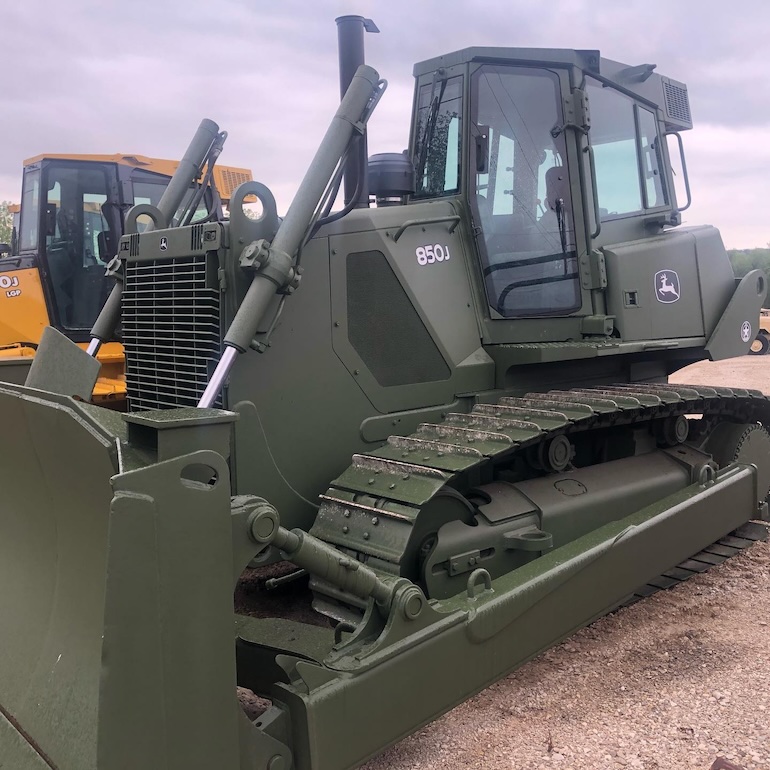

John Deere 850J Military Dozer
The John Deere 850J Military Dozer is a powerful and reliable machine designed to excel in the rigorous demands of military operations. Engineered with precision and durability, this dozer features a robust John Deere engine that delivers exceptional power and performance. Its advanced hydrostatic transmission ensures smooth and responsive control, allowing for precise maneuvering in challenging terrains.
John Deere 850J Military Dozer:
| Specification | Value |
|---|---|
| Engine | John Deere PowerTech Plus |
| Net Power | 187 hp (139 kW) |
| Operating Weight | 42,800 lbs (19,414 kg) |
| Track Gauge | 78.7 in (2000 mm) |
| Blade Type | PAT (Power-Angle-Tilt) |
| Blade Width | 156 in (3962 mm) |
| Blade Height | 58 in (1473 mm) |
| Blade Capacity | 5.9 cu yd (4.5 m³) |
| Maximum Speed – Forward | 6.8 mph (11 km/h) |
| Maximum Speed – Reverse | 7.5 mph (12.1 km/h) |
| Ground Clearance | 14.6 in (370 mm) |
| Fuel Tank Capacity | 105 gal (397 L) |
| Hydraulic System | Load-sensing, closed-center |
| Hydraulic Pump Flow | 75.7 gpm (286 L/min) |
| Undercarriage Type | Sealed and Lubricated |
| Track Shoe Width | 24 in (610 mm) |
| Track Length on Ground | 104.3 in (2649 mm) |
| Ground Pressure | 8.3 psi (57 kPa) |
| Number of Track Rollers | 7 |
| Optional Equipment | Armored cab, winch, ripper, air conditioning, additional lighting |
The JD 850J is built to withstand harsh conditions, providing superior pushing power, grading capabilities, and excellent stability. With its reinforced undercarriage and armored cab options, the John Deere 850J Military Dozer is well-equipped to handle a wide range of tasks, from construction and earthmoving to fortification and battlefield support, making it an indispensable asset for military engineering and construction units.

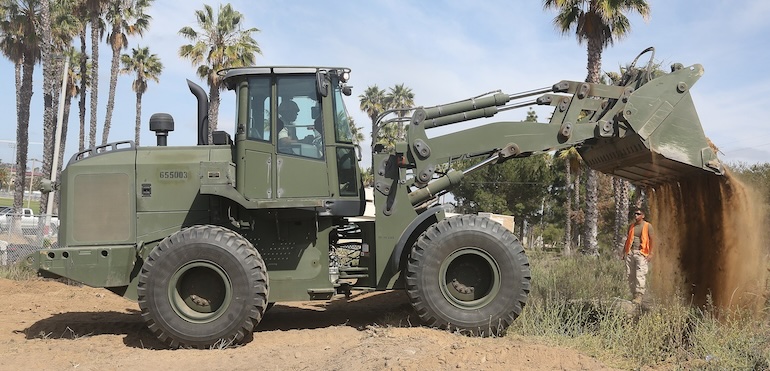

John Deere 624K Military Wheel Loader
The John Deere 624K Military Wheel Loader is a robust and versatile machine designed to meet the demanding needs of military operations. Engineered for durability and reliability, this wheel loader excels in a variety of tasks, from material handling and earthmoving to support missions in harsh environments.
With advanced features and a rugged design, the 624K ensures high performance and operational efficiency, making it a critical asset for military engineering and logistical support.
JD 624K Military Wheel Loader Specs
| Specification | Details |
|---|---|
| Engine | John Deere PowerTech Plus 6068H |
| Engine Type | 6-cylinder, turbocharged, diesel |
| Net Power | 232 hp (173 kW) @ 1,800 rpm |
| Gross Power | 249 hp (186 kW) @ 1,800 rpm |
| Displacement | 6.8 L (414 cu in) |
| Operational Weight | 18,900 kg (41,667 lb) |
| Bucket Capacity | 2.7-4.0 m³ (3.5-5.25 yd³) |
| Dump Clearance at Full Height | 2.91 m (9 ft 6 in) |
| Breakout Force | 15,782 kg (34,784 lb) |
| Transmission | Countershaft type power shift |
| Travel Speed – Forward | 40 km/h (25 mph) |
| Travel Speed – Reverse | 29 km/h (18 mph) |
| Hydraulic System | Load-sensing, closed-center |
| Pump Type | Variable displacement axial piston |
| Max Flow | 200 L/min (52.8 gal/min) |
| System Pressure | 27,600 kPa (4,000 psi) |
| Fuel Tank Capacity | 360 L (95 gal) |
| Cooling System Capacity | 48 L (12.7 gal) |
| Hydraulic Reservoir | 132 L (35 gal) |
| Steering Articulation Angle | 40 degrees |
| Turning Radius | 5.8 m (19 ft) |
| Tires (front / rear) | 20.5 R25 radial |
| Ground Clearance | 425 mm (16.7 in) |
| Service Brakes | Wet-disc, hydraulic actuated |
| Parking Brake | Spring-applied, hydraulically released |
The John Deere 624K Military Wheel Loader is designed to operate efficiently in a variety of demanding environments, offering exceptional power, durability, and versatility. Its robust engine and hydraulic systems ensure reliable performance, while advanced features such as load-sensing hydraulics and high breakout force enhance its operational capabilities. This machine is well-suited for a wide range of military applications, including base construction, material handling, and support missions in challenging terrains.

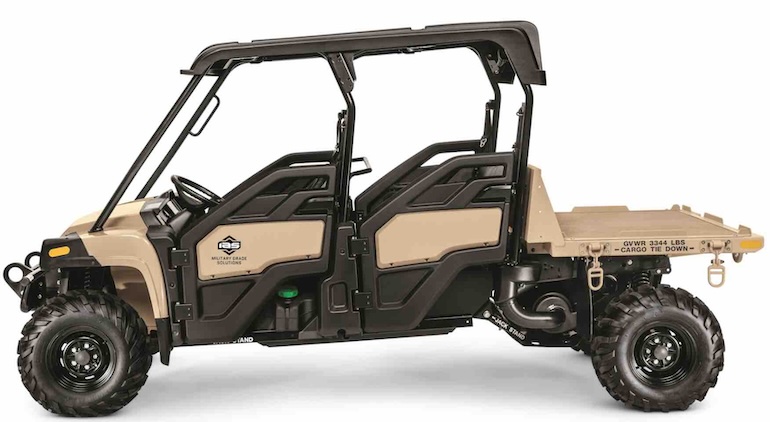

John Deere Gator UTV IAS MACH-1 S4
The John Deere Gator Military UTV IAS MACH-1 S4 is a versatile, high-performance utility vehicle designed to meet the rigorous demands of military operations. This robust UTV combines exceptional durability with advanced engineering to deliver reliable performance across a variety of challenging terrains. Equipped with state-of-the-art Independent Adjustable Suspension (IAS) and a powerful engine, the MACH-1 S4 provides superior handling and stability, ensuring that military personnel can confidently navigate rough and unpredictable environments.
Maintenance and Cargo Hauler (MACH) MACH-1XL specs:
| Specification | Details |
|---|---|
| Engine Model |
3TNV70 |
| Fuel | Diesel |
| Displacement | 854 cc |
| Cylinders | 3 |
| Oil Filter | Spin On Filter |
| Air Cleaner | Dual Element, Replaceable |
| Cooling | Liquid |
| Drive Train | |
| Type | Continuously Variable Transmission (CVT) with Clutch Enclosure |
| Gear Ranges | Forward HI and LO – Neutral – Reverse |
| Travel Speeds (km/h / mph) | Forward HI: 56 / 35; Forward LO: 27 / 17; Reverse: 32 / 20 |
| Electrical System | |
| Type | 12 Volt |
| Battery Size (Cold Cranking Amps) | 480 @ -18°C (0°F) |
| Alternator | 55 Amp |
| Fluid Capacities | |
| Fuel Tank | 26.5 L (7.0 gal) |
| Crankcase (with filter) | 1.7 L (1.8 qt) |
| 4WD Front Differential | 0.58 L (19.6 oz) |
| Transaxle | 4 L (4.2 qt) |
| Cooling System (including recovery tank) | 5.5 L (5.8 qt) |
| Brake | 255 ML (12 oz) |
| Steering and Brakes | |
| Steering | Rack and Pinion with Power Steering |
| Brakes | Hydraulic Disc |
| Tires | |
| Front and Rear Tires | General Grabber AT2 27×8.50 R14LT |
| Load Capacity | 689 kg (1520 lb) |
| Max Inflation Pressure | 344 kPa (50 psi) |
| Dimensions | |
| Width (overall) | 1.6 m (62 in) |
| Length (with bumper) | 3.9 m (155 in) |
| Height | 1.9 m (75.0 in) |
| Ground Clearance | 28 cm (11.0 in) |
| Approach Angle | 50° |
| Hitch | |
| Front | Standard 2 in Receiver |
| Rear | Standard 2 in Receiver |
| Cargo Bed | |
| Material | Aluminum |
| Width (overall) | 1,422 mm (56 in) |
| Length (with lift/tie down provisions) | 1,194 mm (47 in) |
| Height | 102 mm (4.0 in) |
| Weight (Bed, cargo tie downs, lift/tie down provision) | 75 kg (165 lbs) |
| Weights and Capacities | |
| Weight (Empty vehicle with full fluids) | 936 kg (2063 lb) |
| Gross Vehicle Weight Rating (GVWR) | 1,542 kg (3400 lb) |
| Payload Capacity | 635 kg (1400 lb) |
| Cargo Bed Capacity (Not to exceed GVWR) | 454 kg (1000 lb) |
| Towing Capacity (Not to exceed GVWR) | 907 kg (2000 lb) |
| Lubricants | |
| Engine Oil | John Deere PLUS-50™, Torq-Gard Supreme™ |
| Grease | Multi-PurposeHD Lithium Complex Grease |
| Transmission Oil (Transaxle) | John Deere HY-GARD™ (JDM J20C) |
| Transmission Oil (4WD Front Differential) | John Deere HY-GARD™ |
Its spacious design allows for the transportation of personnel and essential equipment, making it an indispensable asset for military logistics and mobility. Whether in training exercises or active deployment, the John Deere Gator Military UTV IAS MACH-1 S4 stands out as a dependable and efficient solution for modern military needs.
I didn’t know John Deere made their Gator UTVs for the military! Do they use civilian engines and suspension, or do they install some reinforced ones for the army?
For military UTVs, Deere installs a 3-cylinder diesel engine, as well as a more powerful suspension.
