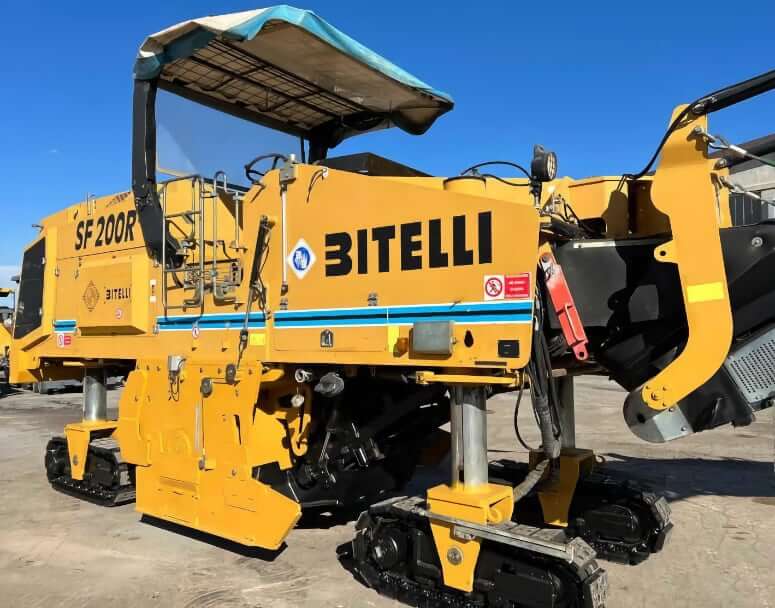

The Bitelli SF200R Cold Planer is a heavy-duty pavement milling machine built for demanding road repair, resurfacing, and rehabilitation work. With a cutting width of around 2,010 mm (≈ 2 m) and a maximum milling depth of 320 mm (≈ 13 in), it’s powered by a robust Mercedes-Benz OM502 LA engine.
When fully equipped, it weighs in at approximately 29,200 kg (≈ 64,375 lb) and can drive its material removal system at a milling speed of up to 29 m/min (95 ft/min). Its wide conveyor (32 in / 80 cm) swings 45° both left and right to efficiently load asphalt into trucks. Designed for productivity in large-scale jobs, the SF200R offers high throughput, versatile discharge options, and dependable performance in heavy milling applications.
Rotary Cutter
| Cutting Width |
79.1 in (2010 mm) |
| Cutting Depth |
12.6 in (320 mm) |
| Number Of Tools |
178 |
Conveyor System
| Discharge Conveyor Width |
31.5 in (800 mm) |
| Collecting Conveyor Width |
31.5 in (800 mm) |
| Discharge Conveyor Swing (R/L) |
45° |
Dimensions
| Operating Length |
544.5 in (13830 mm) |
| Shipping Width |
98.4 in (2500 mm) |
| Shipping Height |
120.1 in (3050 mm) |
| Shipping Length |
442.5 in (11240 mm) |
| Max Operating Height |
177.2 in (4500 mm) |
Engine Details
| Number of Cylinders |
8 |
| Engine Make |
Mercedes-Benz |
| Engine Model |
Mercedes-Benz OM 502 LA |
| Displacement |
970 cu in (15.9 L) |
| Bore |
5.1 in (130 mm) |
| Stroke |
5.9 in (150 mm) |
| Gross Power |
509.6 hp (380 kw) |
| Power Measured @ |
1800 rpm |
| Peak Torque |
1918 lb ft (2600 Nm) |
| Torque Measured @ |
1080 rpm |
| Aspiration |
Turbocharged and intercooled |
Operational Specs
| Operating Weight – Full Load |
64375 lb (29200 kg) |
| Shipping Weight – Empty |
60627 lb (27500 kg) |
| Operating Speed |
95.2 ft/min (29 m/min) |
| Travel Speed |
2.8 mph (4.5 km/h) |
Service Refill Capacities
| Fuel Tank Capacity |
211.4 gal (800 L) |
| Engine Oil Capacity |
10 gal (38 L) |
| Cooling System Capacity |
10 gal (38 L) |
| Water Spray System Fluid Capacity |
792.6 gal (3000 L) |
