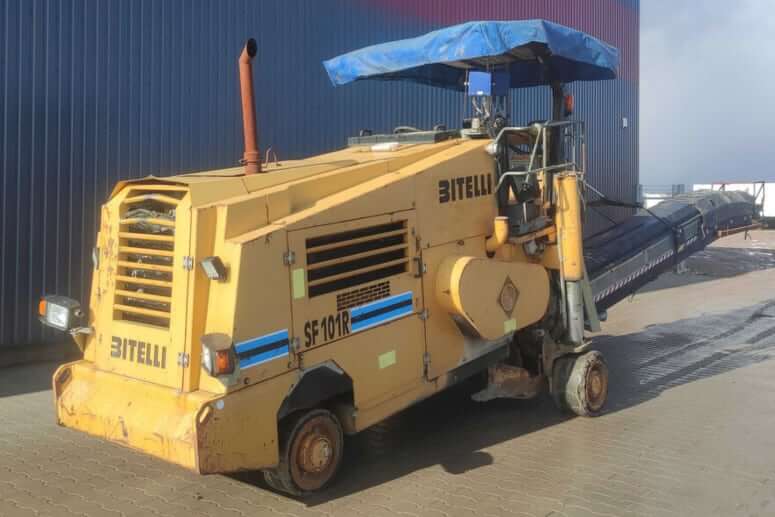

The Bitelli SF101R Cold Planer is a high-output road construction and milling machine built for precision, durability, and sustained performance. With a 1-meter cutting width and the ability to mill up to 250 mm (9.9 in) deep, the unit is powered by a robust 148 kW / ~198-199 hp Deutz BF6M1013C engine, delivering torque where it counts.
Weighing in at around 15,000 kg (≈ 33,070 lb) fully equipped and reaching milling speeds of 30 m/min (nearly 100 ft/min), this machine is designed to handle heavy-duty cold planing work—whether grinding asphalt, preparing road surfaces, or reclaiming concrete.
Rotary Cutter
| Cutting Width | 39.4 in (1000 mm) |
| Cutting Depth | 9.9 in (250 mm) |
Its discharge conveyor swings 21° left/right and runs 500 mm wide, making material handling efficient. Built with transport in mind, it retains manageable dimensions for hauling and setup while maintaining a full-scale milling depth and substantial milling drum.
Conveyor System
| Discharge Conveyor Width | 19.7 in (500 mm) |
| Discharge Conveyor Swing (R/L) | 21° |
Dimensions
| Operating Length | 421.3 in (10700 mm) |
| Shipping Length | 334.6 in (8500 mm) |
| Shipping Width | 70.9 in (1800 mm) |
| Shipping Height | 87.4 in (2220 mm) |
| Max Operating Height | 169.3 in (4300 mm) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Deutz |
| Engine Model | Deutz BF6M1013C |
| Displacement | 439.4 cu in (7.2 L) |
| Bore | 4.3 in (108 mm) |
| Stroke | 5.1 in (130 mm) |
| Gross Power | 198.5 hp (148 kw) |
| Power Measured @ | 2300 rpm |
| Peak Torque | 630 lb ft (854 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
| Specific Fuel Consumption | 0.337 lb/hph (205 g/kWh) |
Operational Specs
| Operating Weight (Full Load) | 33069 lb (15000 kg) |
| Shipping Weight (Empty) | 31967 lb (14500 kg) |
| Operating Speed | 98.5 ft/min (30 m/min) |
| Travel Speed | 3.8 mph (6 km/h) |
Service Refill Capacities
| Fuel Tank Capacity | 79.3 gal (300 L) |
| Engine Oil Capacity | 5.5 gal (21 L) |
| Cooling System Capacity | 8.7 gal (33 L) |
| Water Spray System Fluid Capacity | 185 gal (700 L) |
